Introduction

Customers can access and browse through our image catalog and products through EarthPlatform. In addition to providing useful metadata and details about the listed images, it provides capabilities to interact with them. You can access EarthPlatform here.

Search

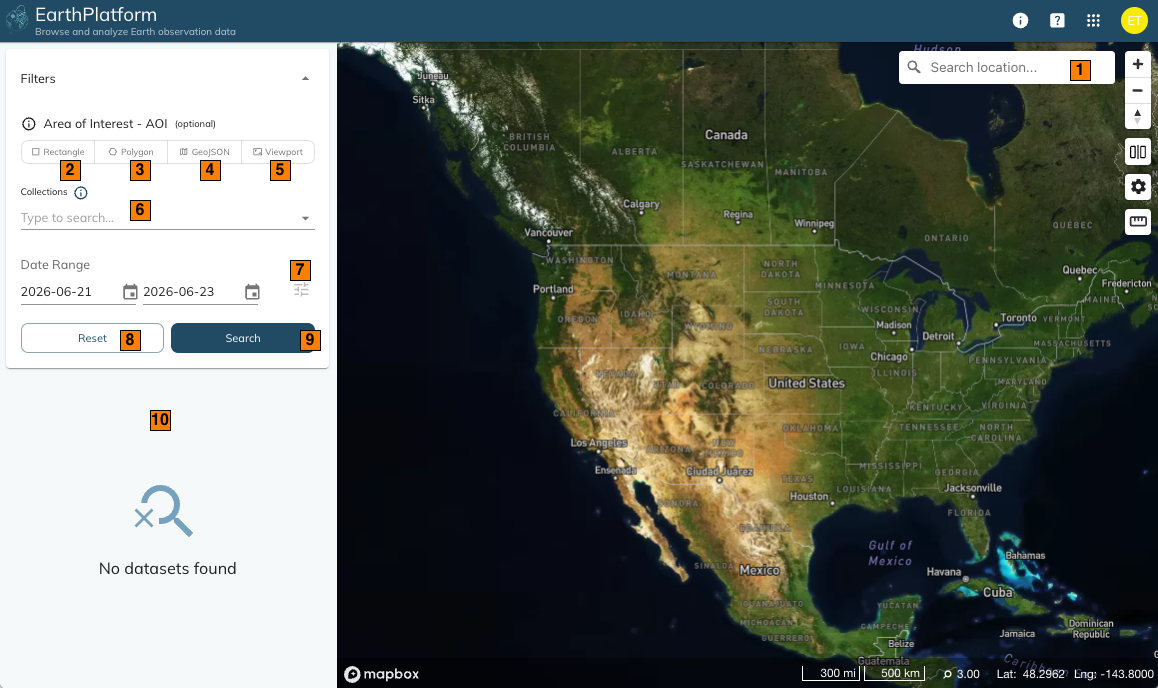

EarthPlatform has a search panel with various customization options. Once you login with your credentials, the landing page is shown with the search filters and results panel on the left:

S. No	Label	Description
	Search Box	Enter any geographic area like "Vancouver", "Chile" etc to find and focus
	Rectangle Tool	Select two vertices of the diagonal on the map to form a rectangular area as a geospatial filter
	Polygon Tool	Select a given area as a geospatial filter on the map by creating vertices with left clicks. Click the first vertex or double-click after the last vertex to complete
	Input GeoJSON	Click to enter or import a GeoJSON as a geospatial filter
	Viewport	Select to define the current map extents as a geospatial filter
	Basic Filters	Select one or more Collections (up to 15) and define a date range
	Advanced Filters	Click to define additional filters based on the selected Collections
	Reset Button	Click to reset all search filters
	Search Button	Click to submit the search
	Results Panel	Area where thumbnails of search results appear

Note

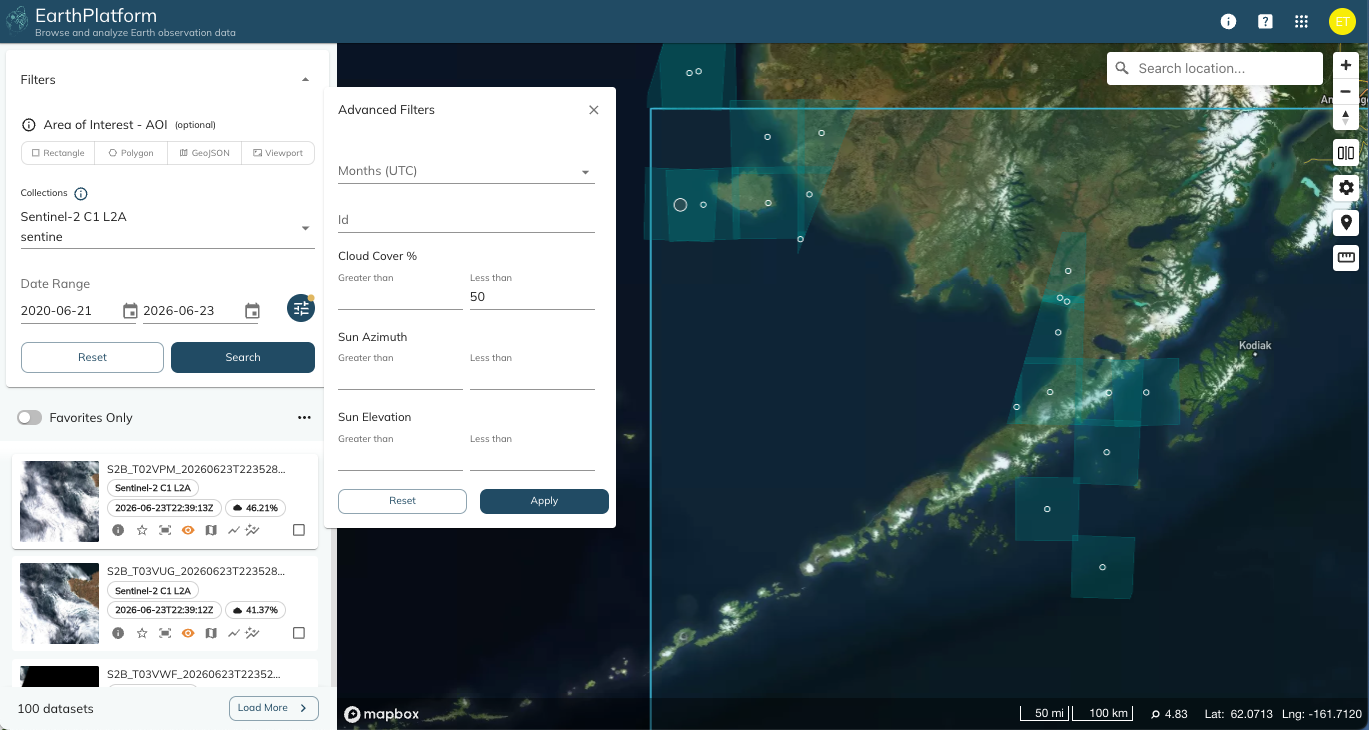

The Advanced Filters panel expands with additional parameters based on the Collection selected. When there are results returned from the search, you can see the results panel populated with images, along with thumbnails if available. When you hover over a search result, the corresponding footprint will be highlighted in yellow on the map.

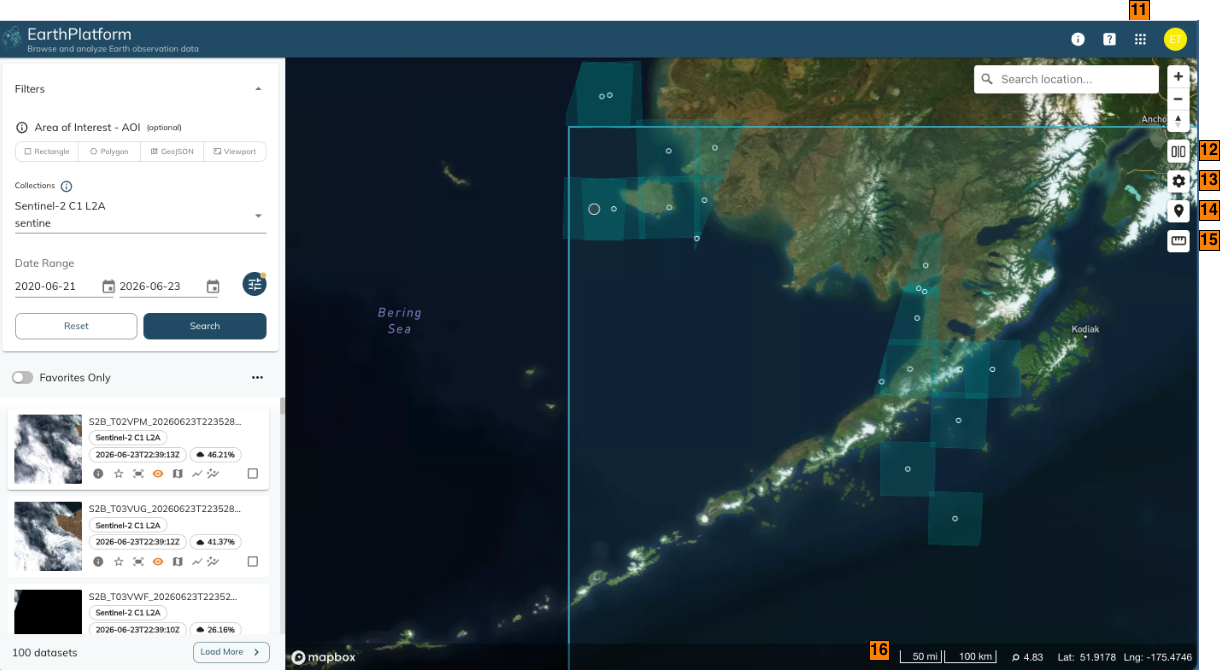

On the right hand side is the map, where you can define the Area of Interest (AOI) and see the footprints of the search results:

S. No	Label	Description
	App Switcher	Click to switch to another EDA-hosted application
	Map Slider	Click to enable the Map Slider to enter image comparison mode
	Settings	Click to change base map layers, Footprint and Image Opacity
	AOI Controls	Center on AOI, Hide AOI, Copy AOI, Delete AOI, and show total area of the AOI. Only appears when there is an AOI on the map.
	Ruler	Click to draw a line and measure the distance between 2 points
	Bottom Panel	Shows latitude/longitude of current cursor position, zoom level, and scale bar

Below are some images showing how the various controls work.

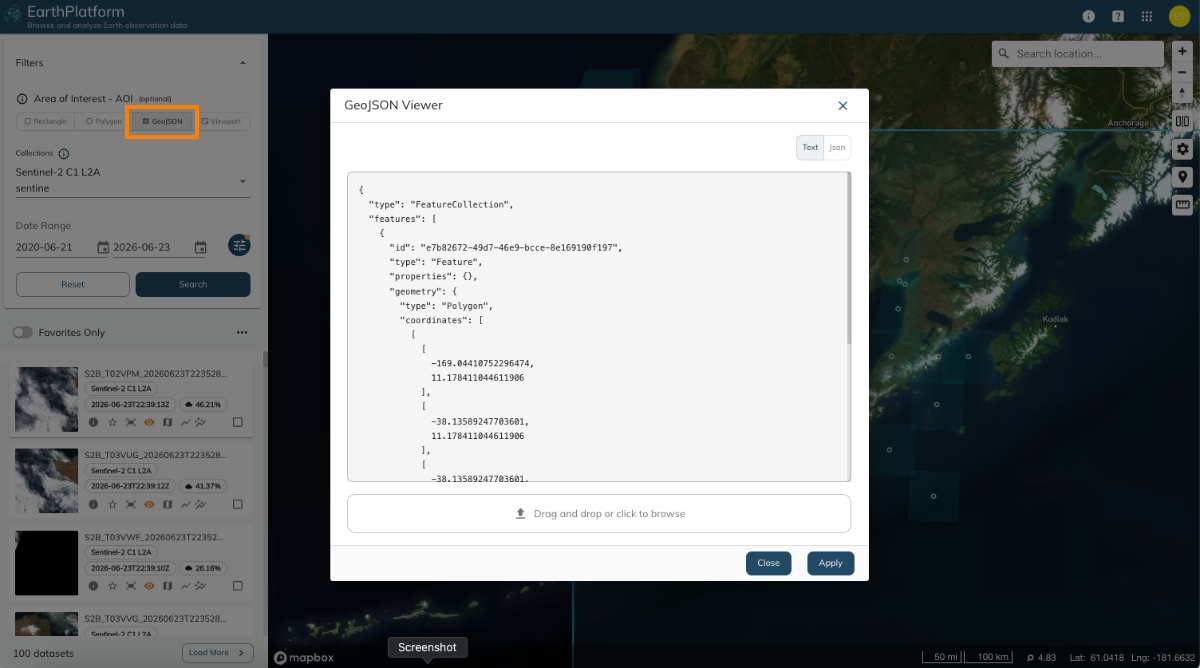

GeoJSON Viewer and Importer:

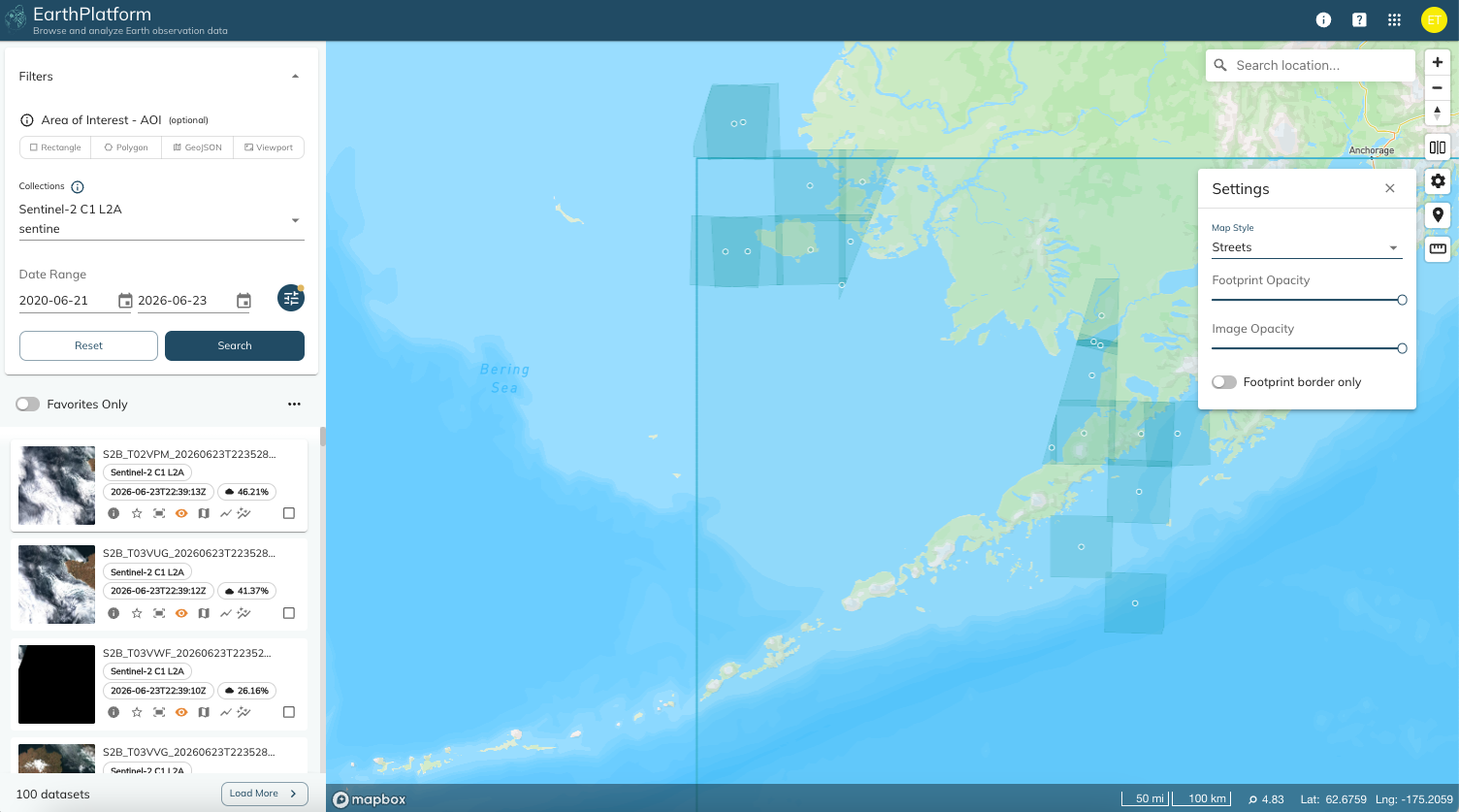

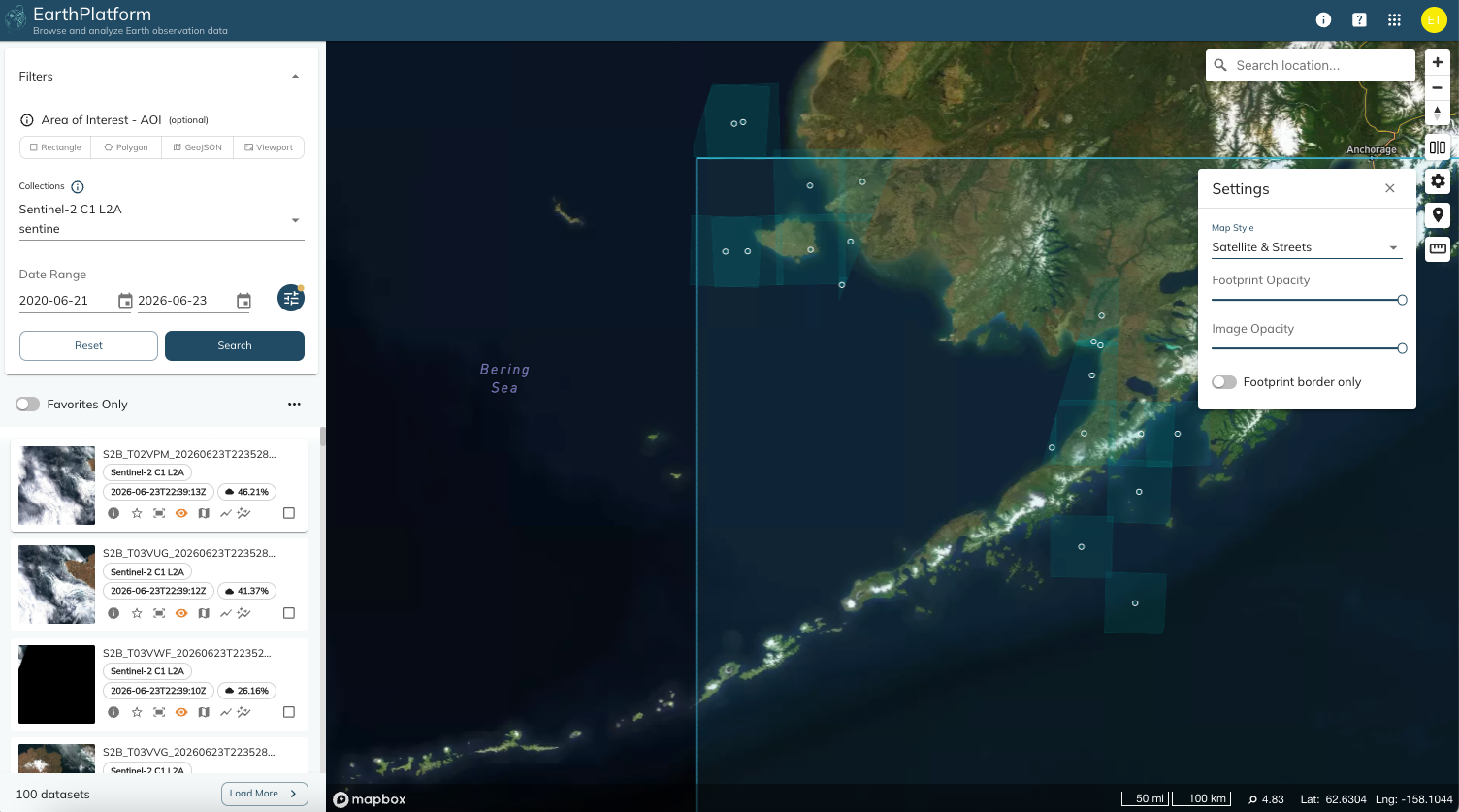

Streets and Satellite Views:

Streets View	Satellite & Streets View

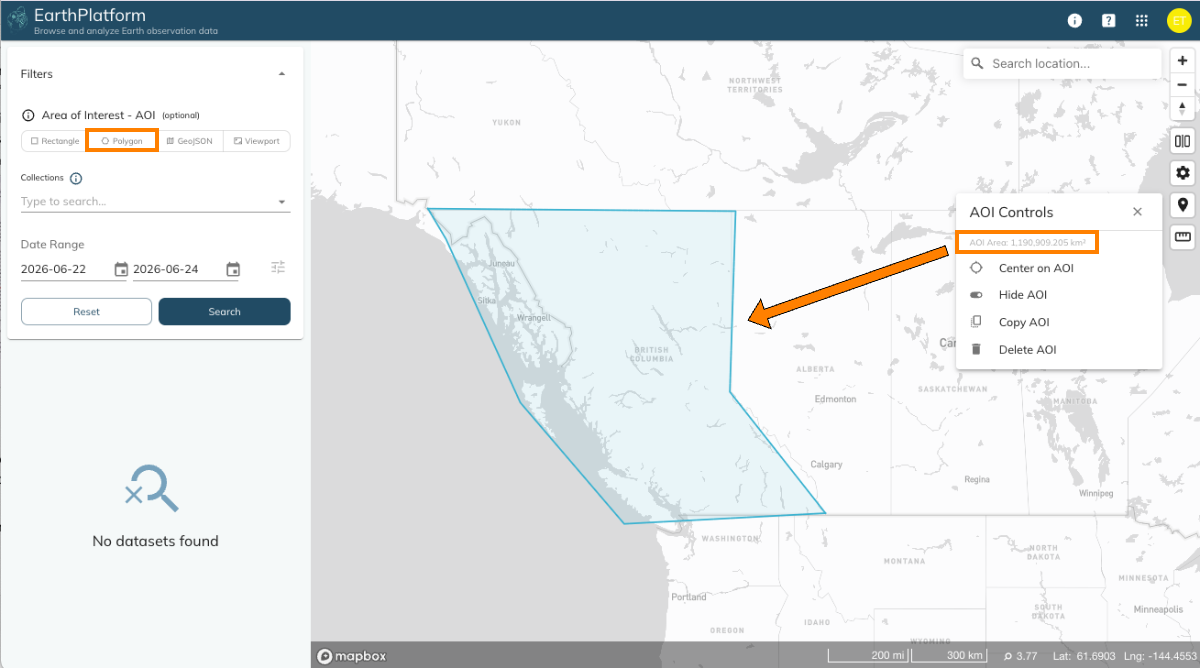

AOI Area Calculation (the example shows the use of the Polygon tool, but the AOI area is displayed regardless of which tool you used to define the AOI):

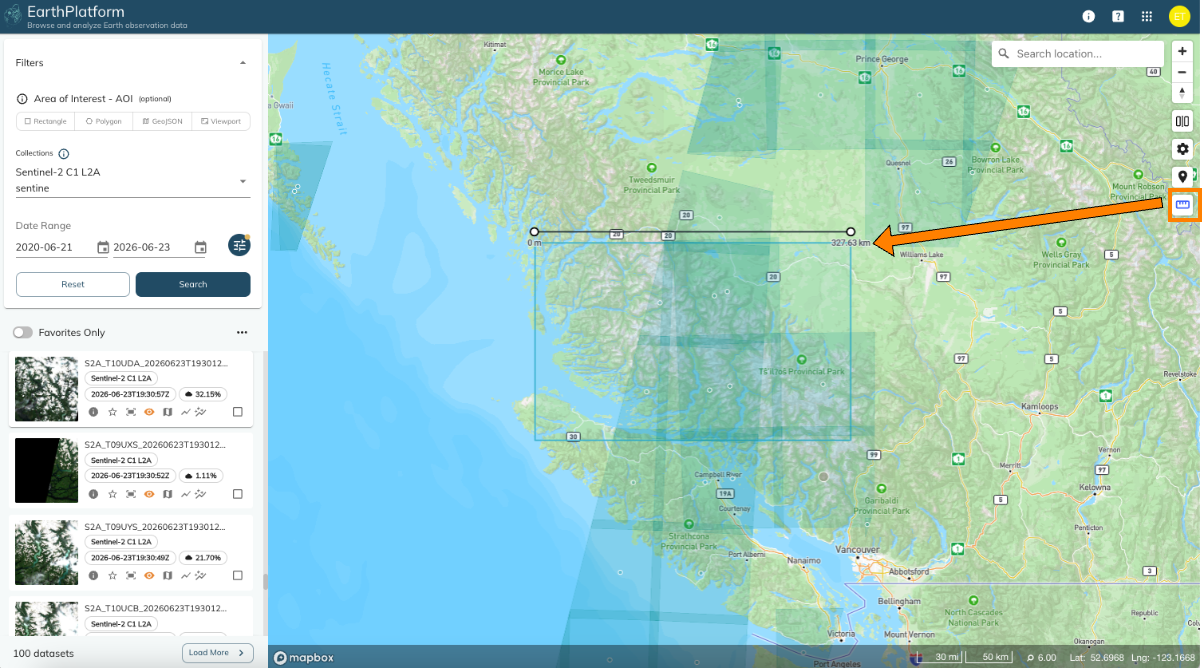

Ruler:

Interacting with the catalog

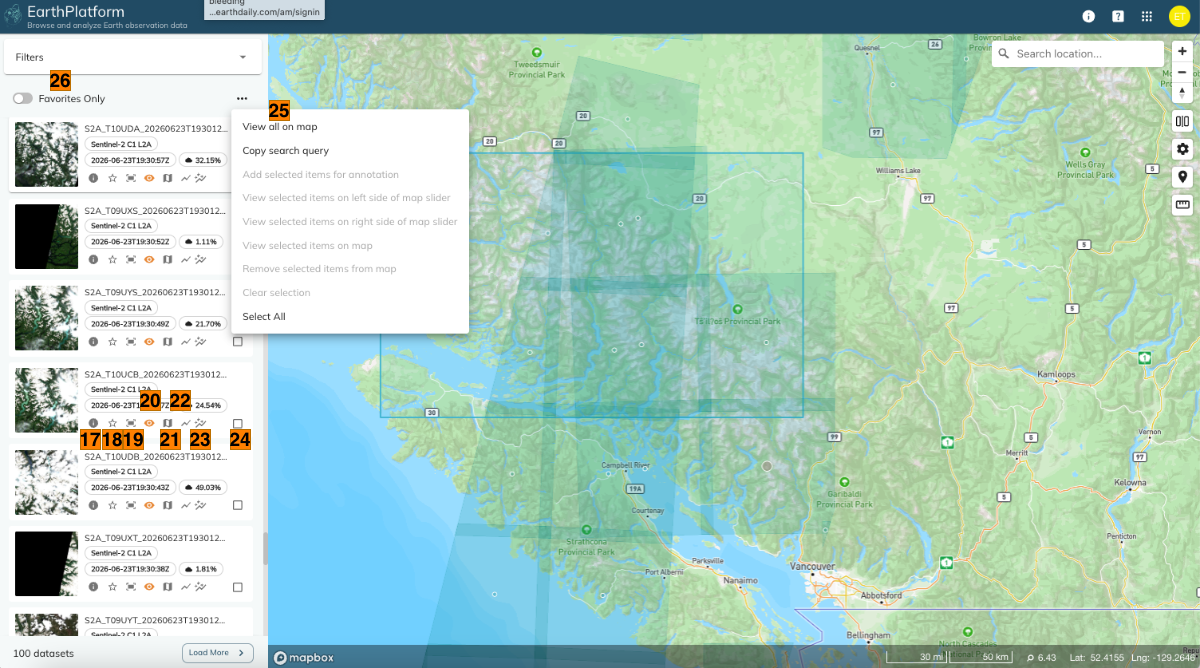

Once you have search results, you can perform various actions on the images:

S. No	Label	Description
	Show Item Properties	Show the Item Properties on the right hand side panel
	Favorite Item	Tag the image as favorite, then use the toggle button (#26) to show only favorites
	Fly to Bounds	Zoom in to the image location
	Toggle Layer Visibility	Show/Hide the footprint on the map
	View on Map	Render the image on the map
	View Visualization Configuration	Toggles the visualization configuration panel to adjust min/max of color bands and gamma values
	Auto adjust Visualization	Auto adjust the image by clipping percentages based on a calculated histogram
	Multi-Select	Allows multi-selecting images for batch actions
	Multi-Select Actions	Actions for multiple images (e.g., 'View all on map')
	View Favorites Only	Toggle to show only favorited images

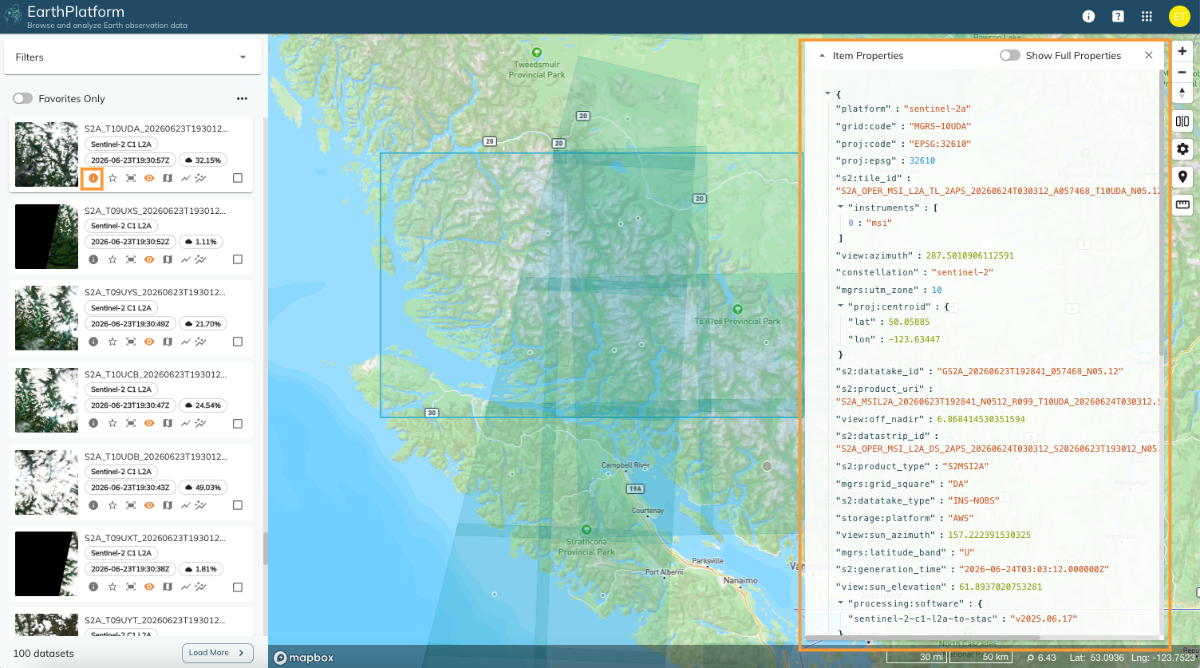

Item Properties panel:

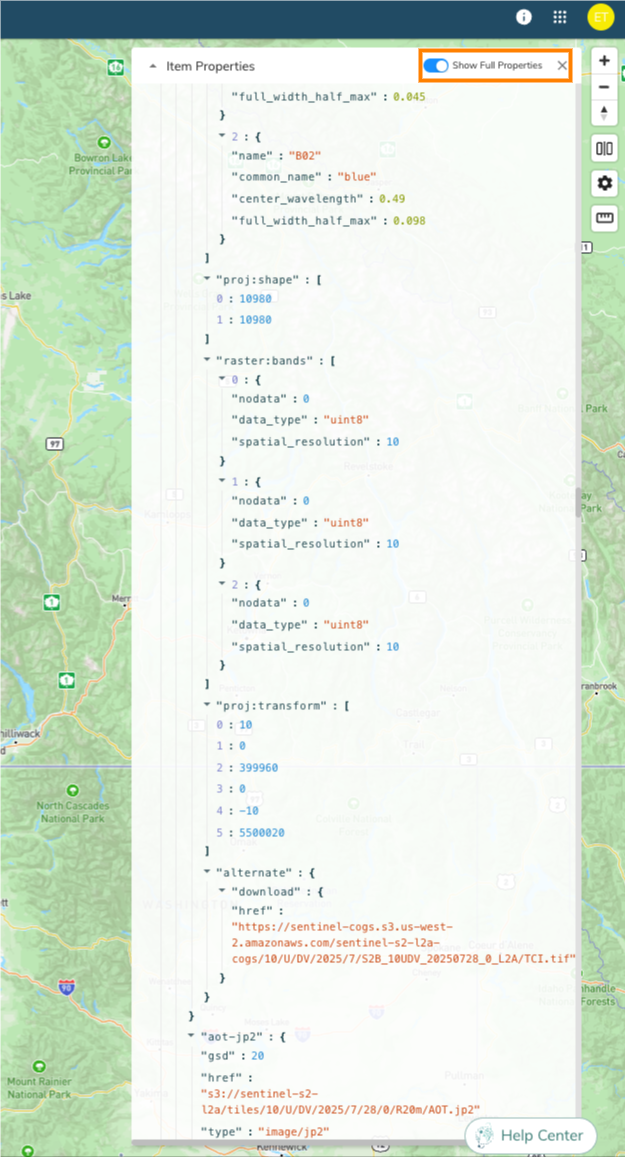

Toggle the Show Full button to see the entire STAC item properties. Under Show Full mode you can also get individual asset URLs and download images by following the "href":

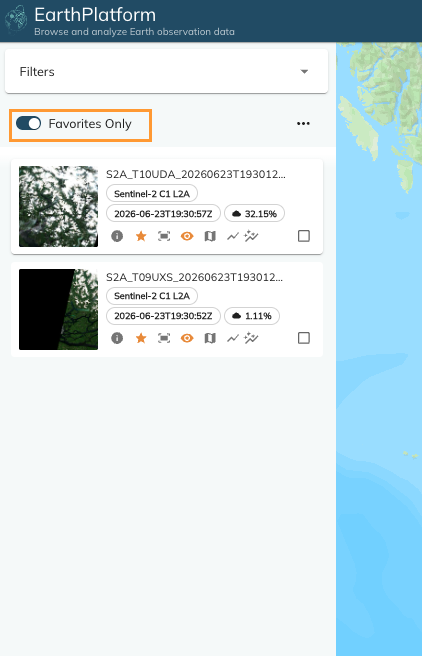

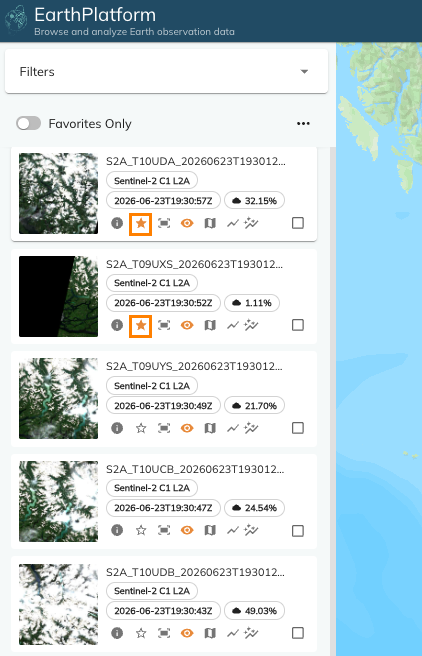

Tagging an item as favorite and viewing favorites:

Favorites	View Favorites

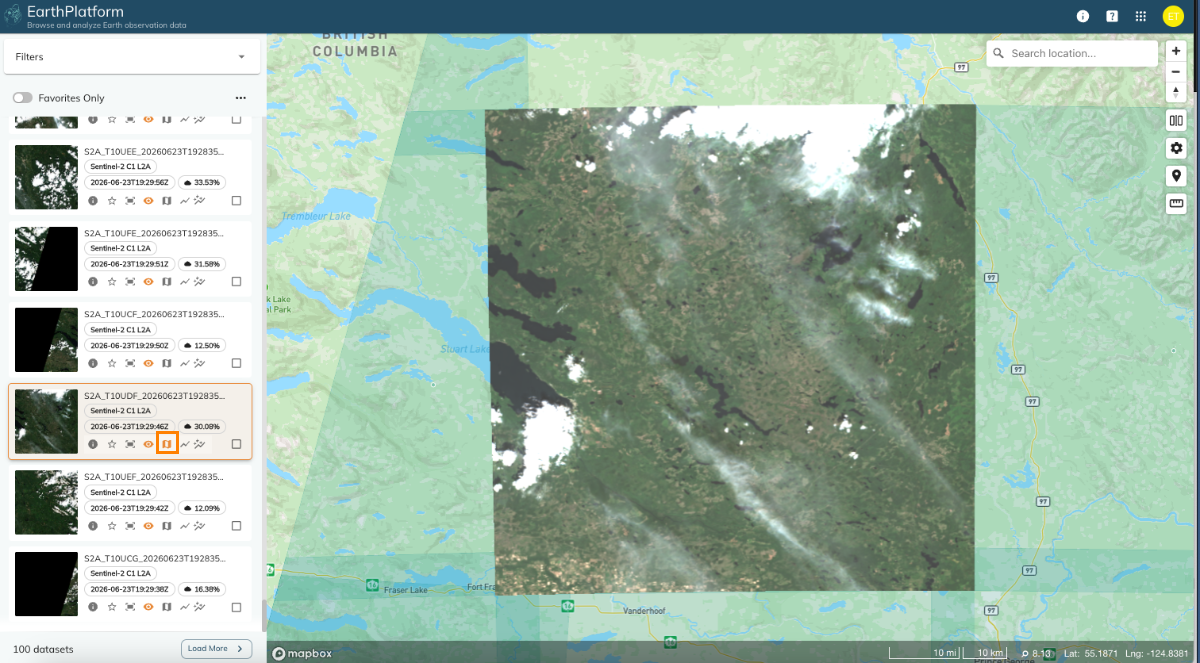

View on Map:

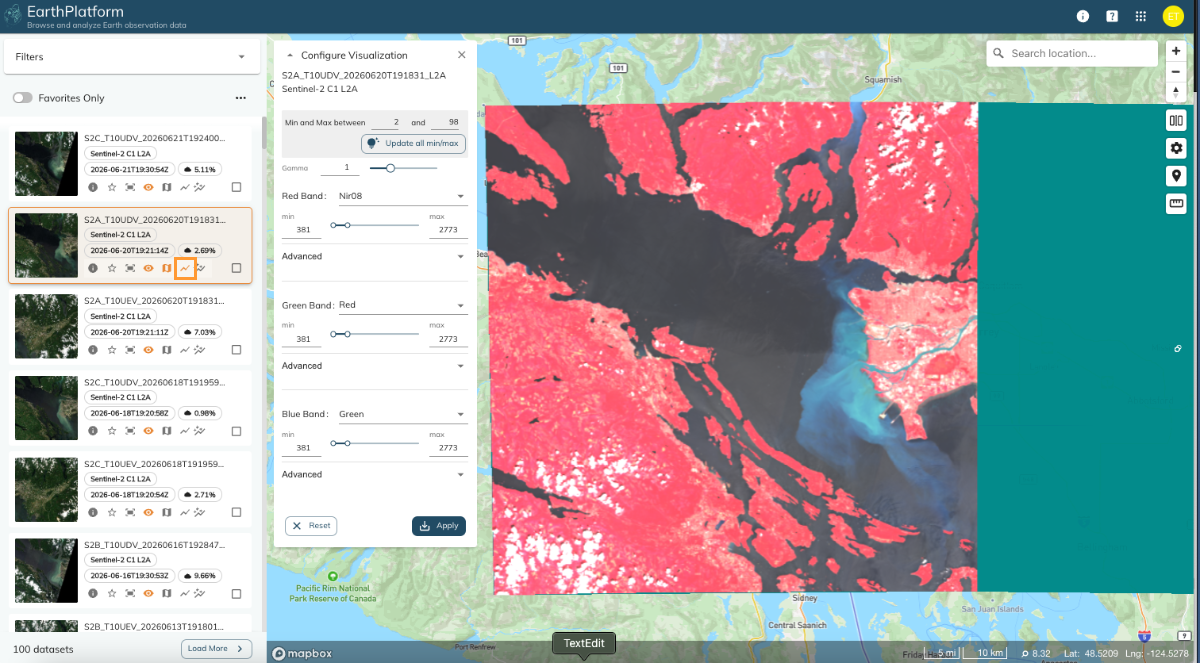

Visualization configuration:

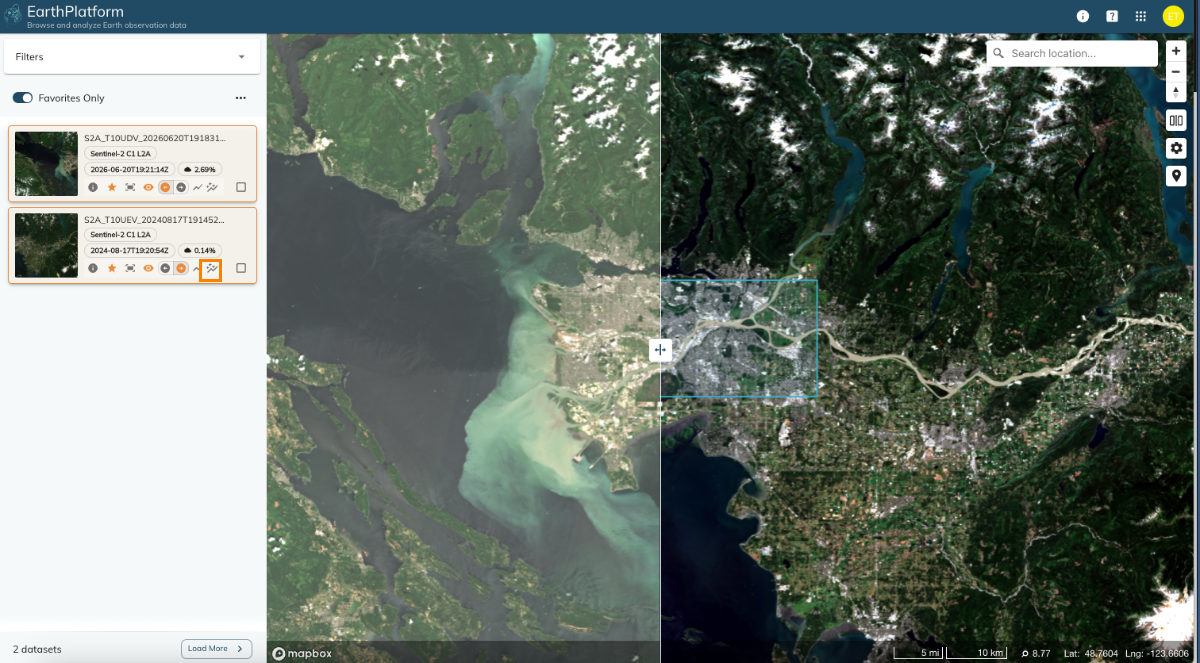

Auto visualization comparison. The image on the right has its visualization parameters auto-adjusted, while the one on the left uses default values:

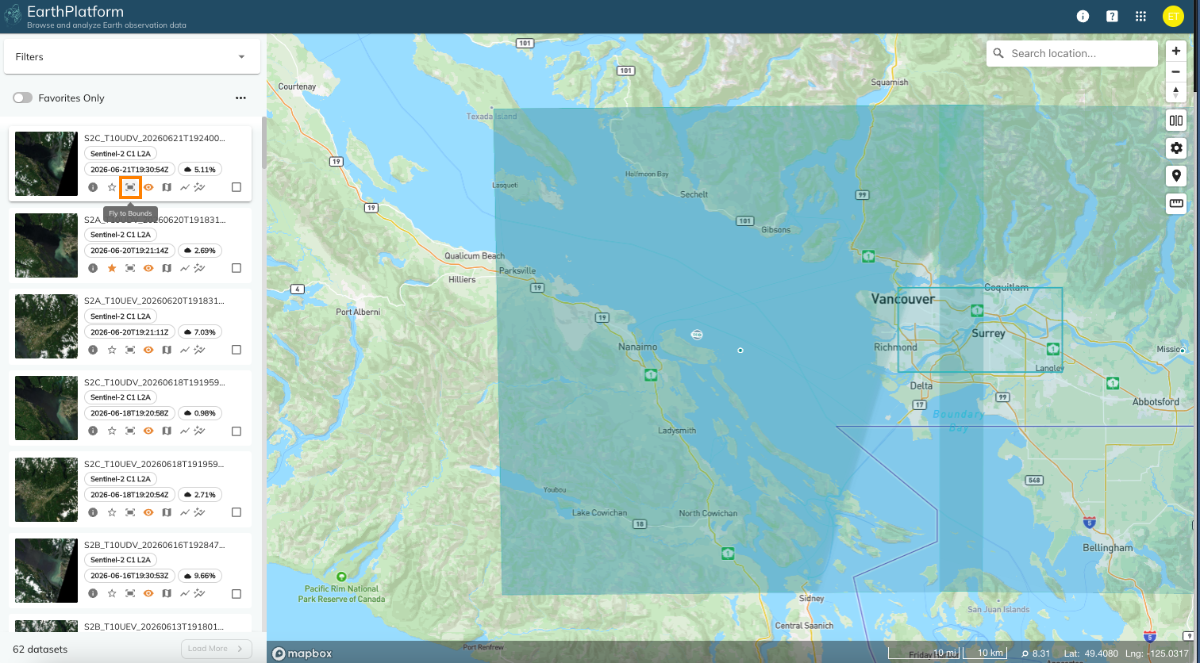

Fly to Bounds:

Map Slider

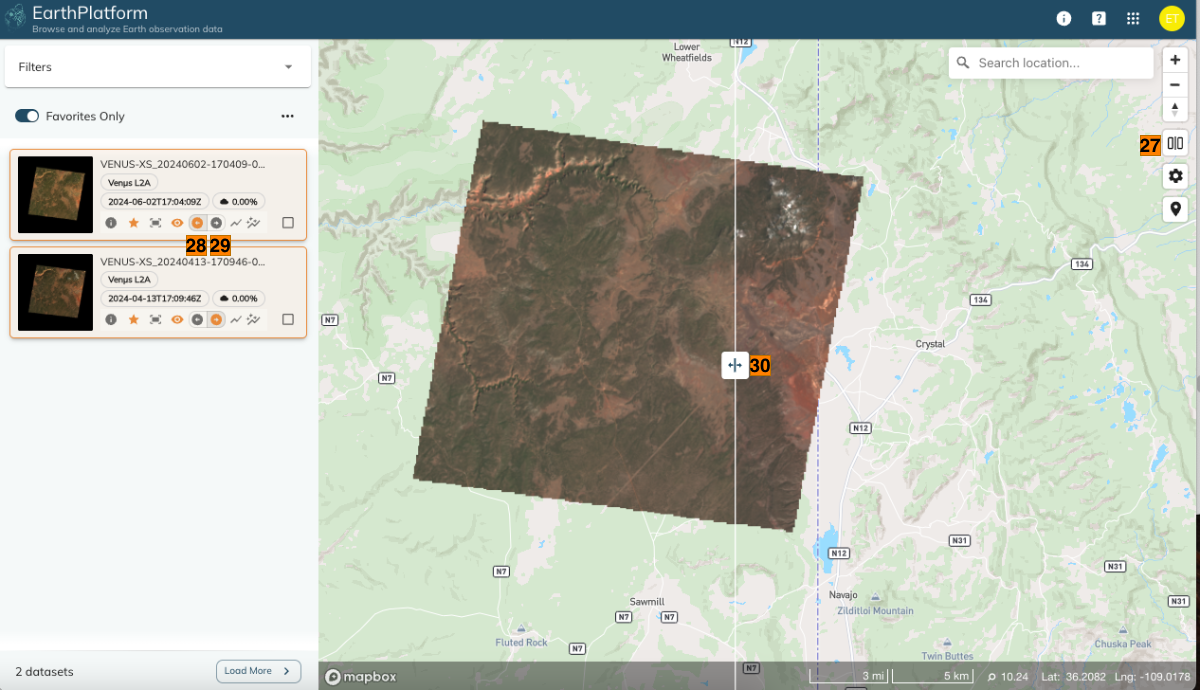

Compare two images over different dates by using the Map Slider:

S. No	Label	Description
	Show/Hide Map Slider	Toggle for the Map Slider comparison mode
	Move Image Left	Select the image for the left side of the slider
	Move Image Right	Select the image for the right side of the slider
	Slider	The map slider

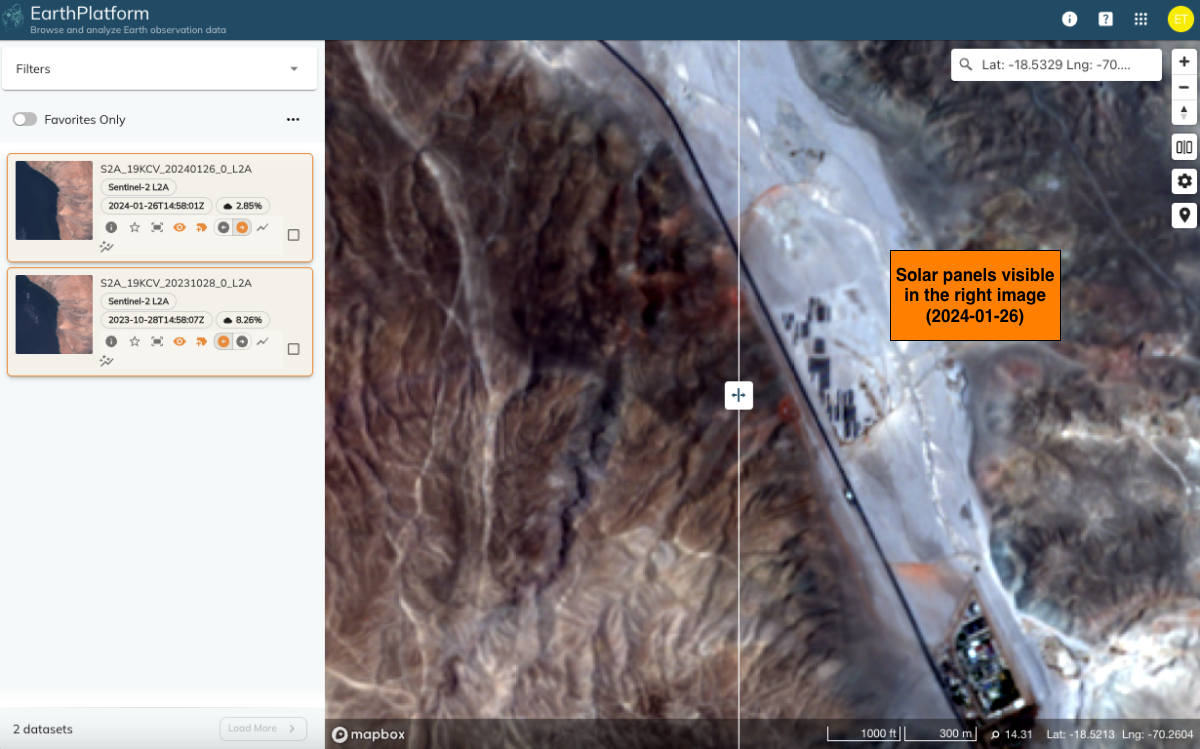

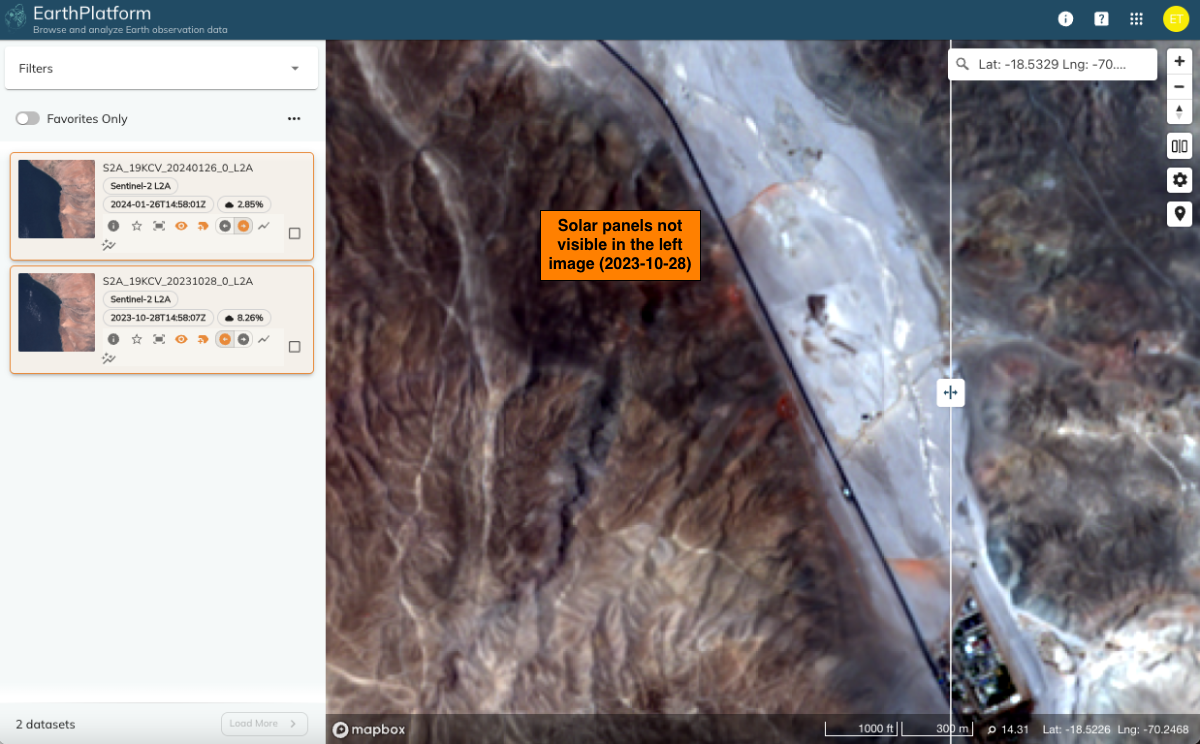

Example showing solar panel installation between 2023-10-28 and 2024-01-26:

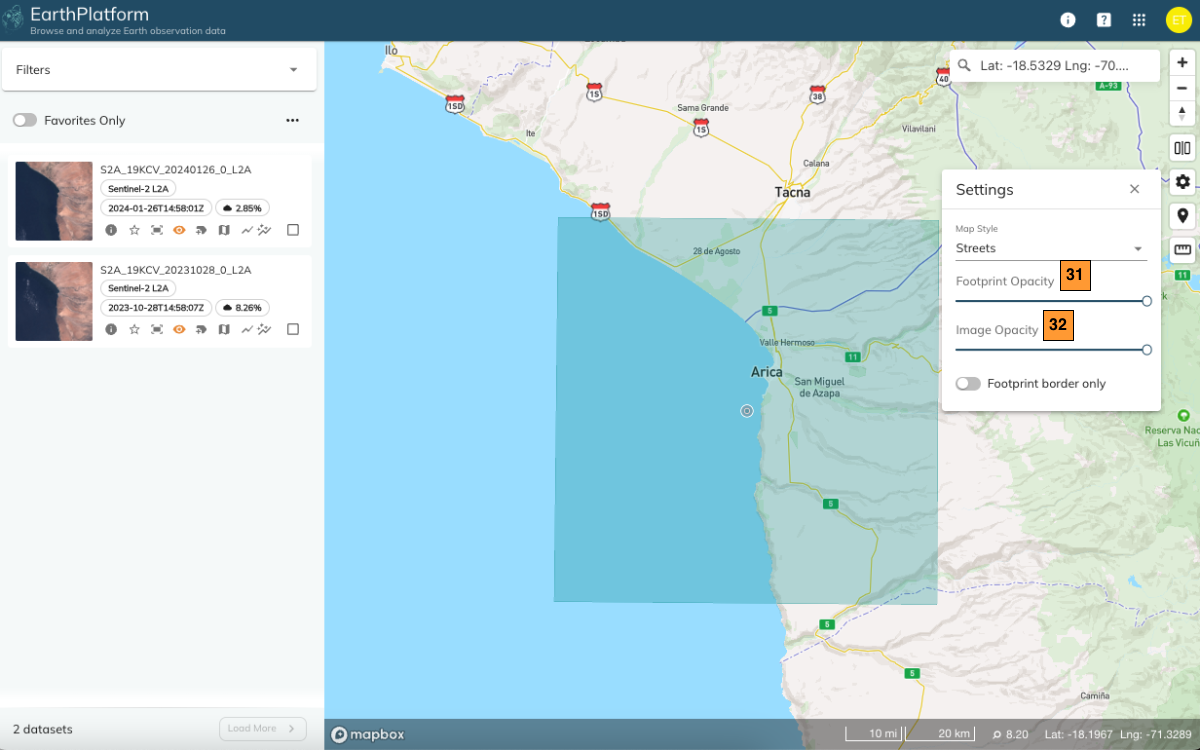

Opacity Controls

S. No	Label	Description
	Footprint Opacity	Toggle the opacity/transparency of the footprint
	Image Opacity	Toggle the opacity/transparency of an image

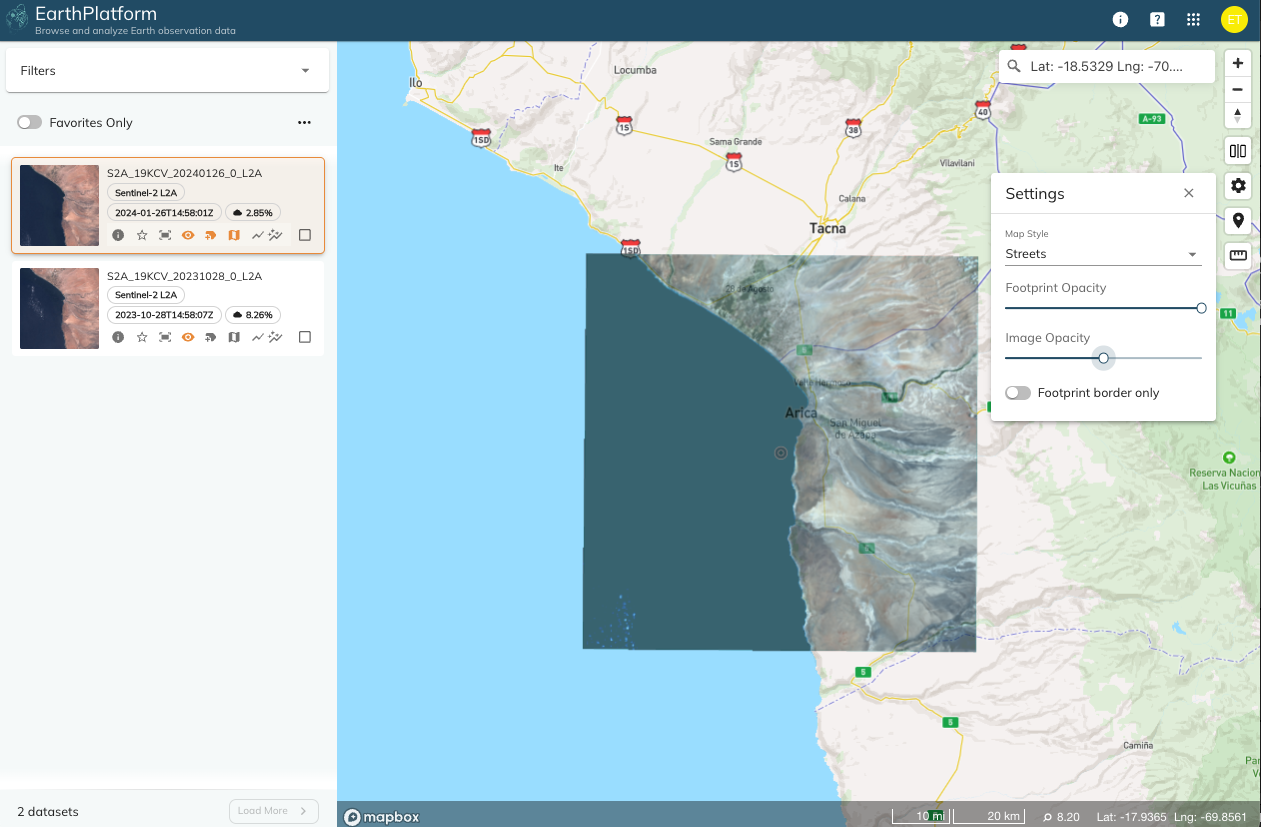

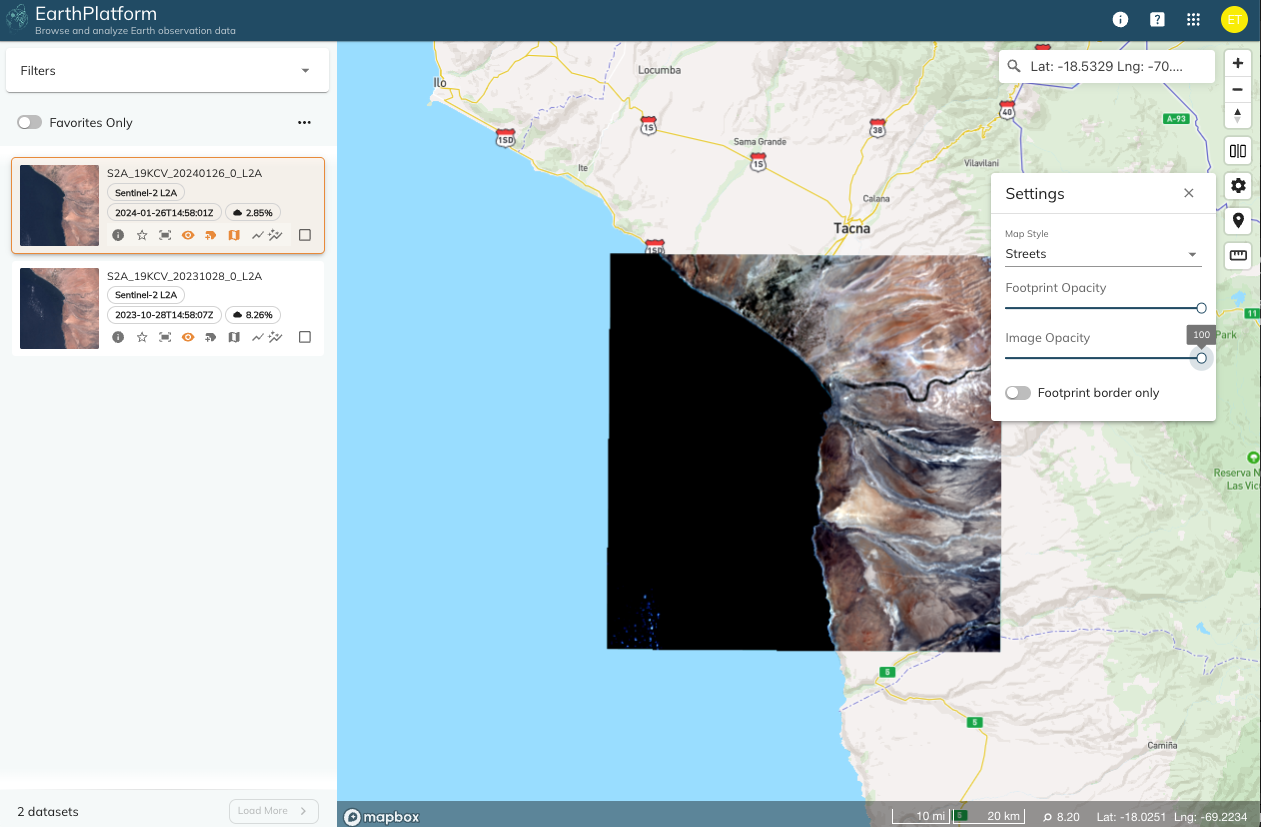

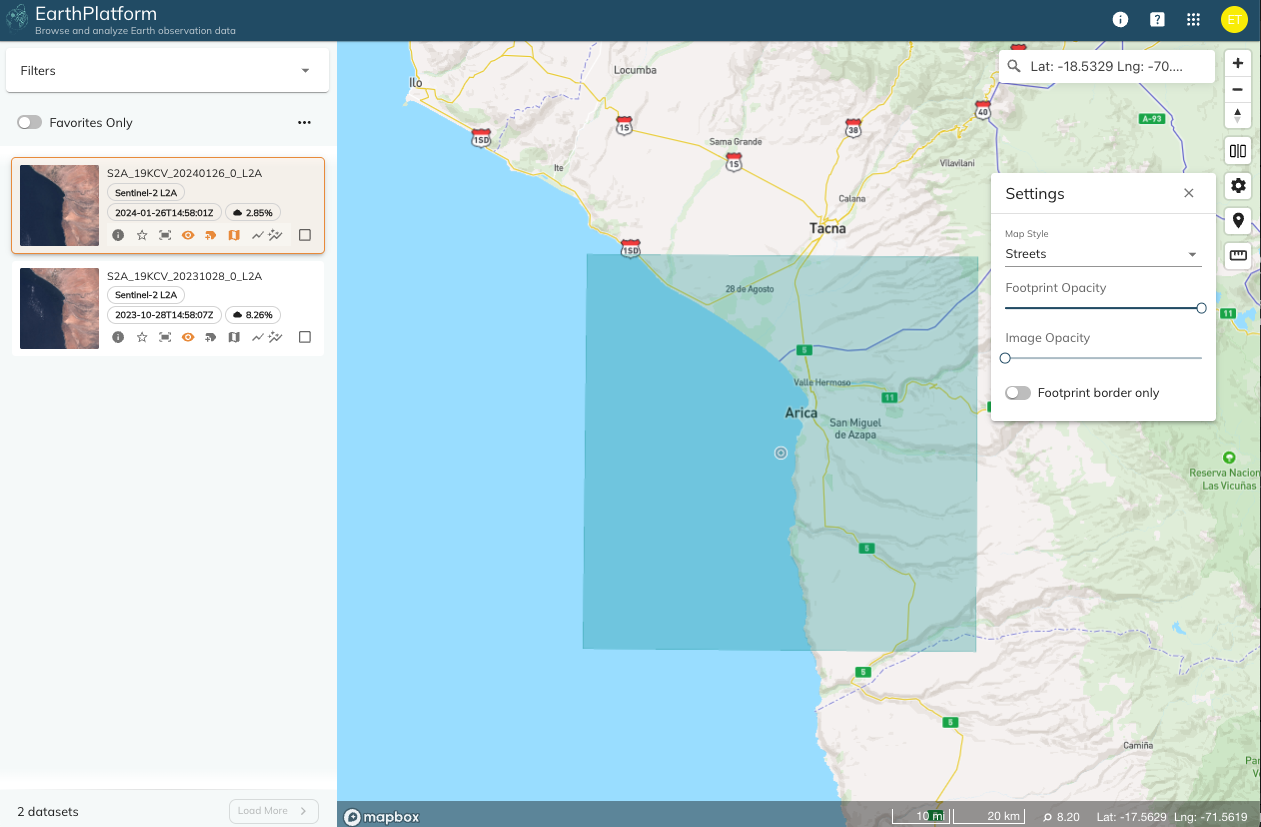

Image opacity at 0%, 50%, and 100%:

Image Opacity 0	Image Opacity 50	Image Opacity 100

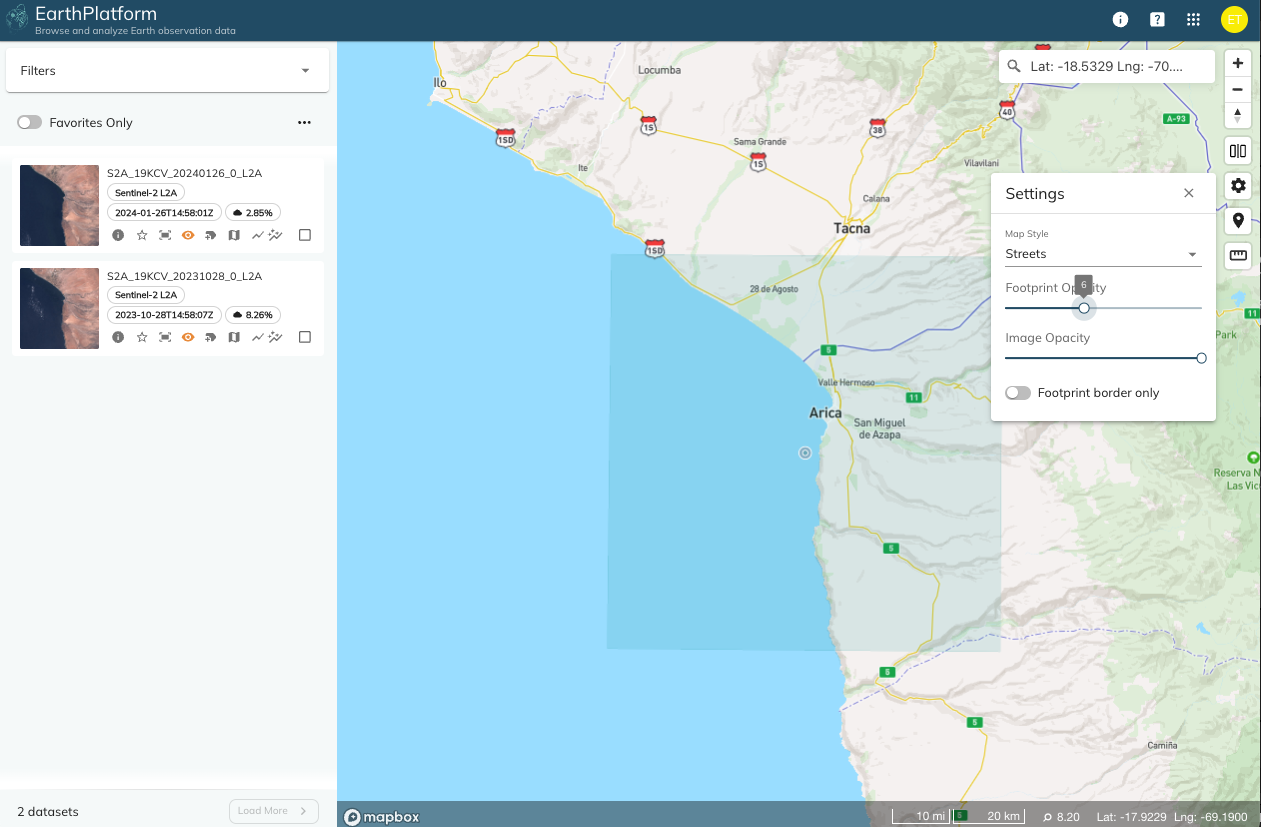

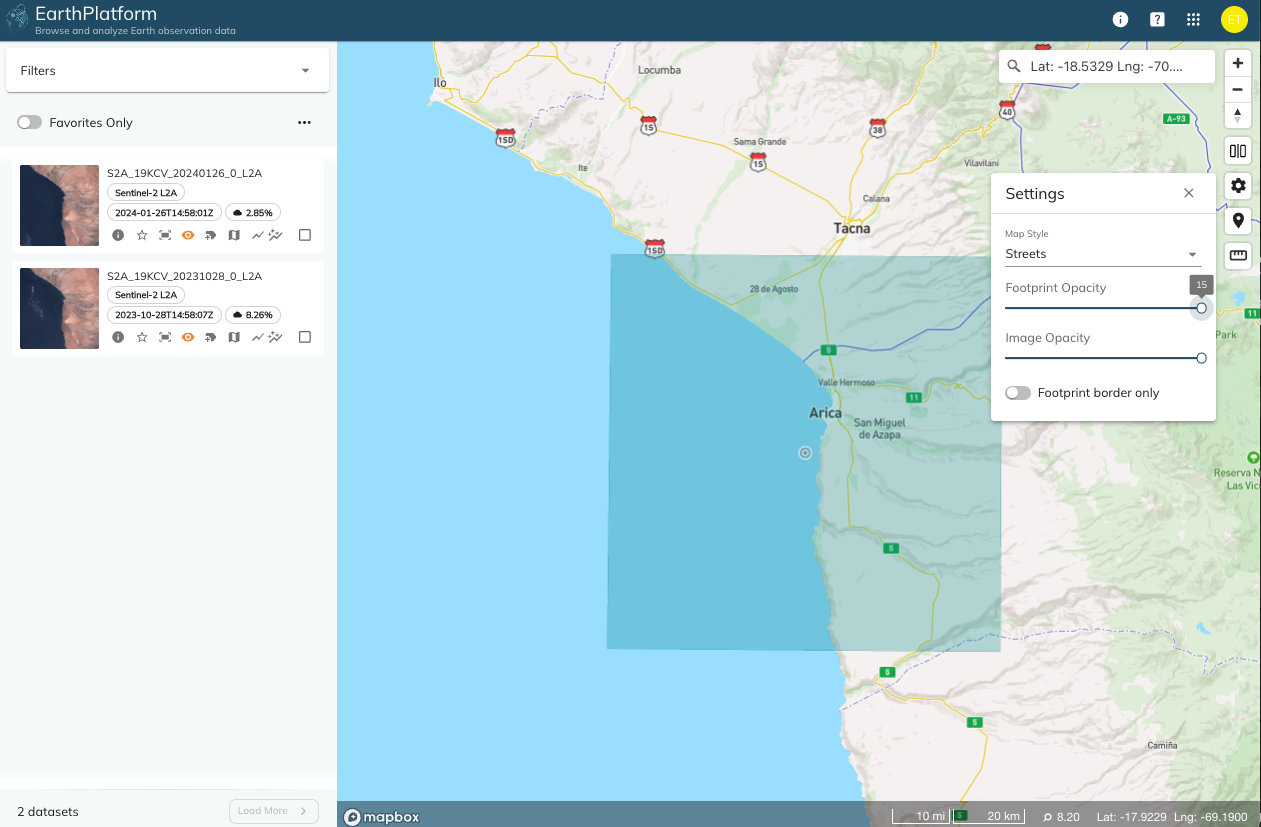

Footprint opacity:

Footprint Opacity High	Footprint Opacity Low
